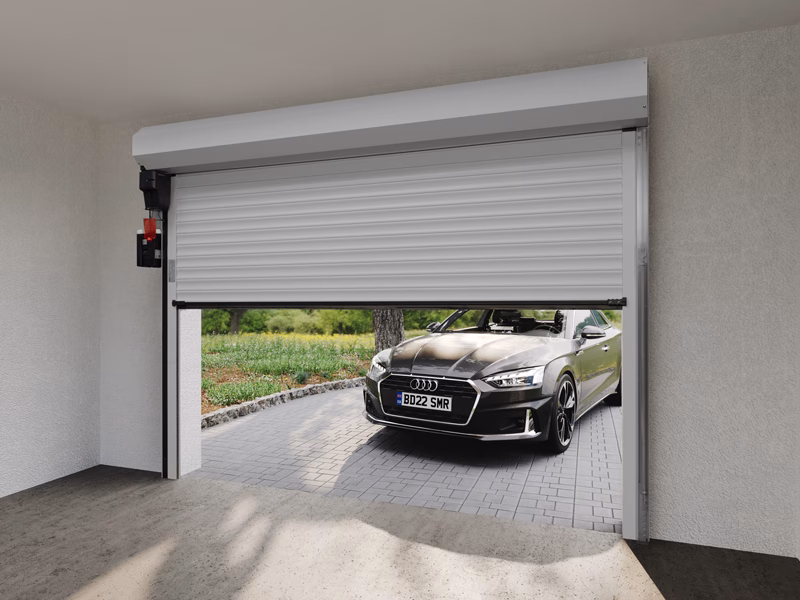

Roller Garage Doors

Roller garage doors are designed to combine practicality, safety, and aesthetics in one solution. They represent an excellent choice for homeowners who want to maximize their garage space without compromising on security or durability. Built from high-quality materials, these doors are engineered to withstand harsh weather conditions while providing smooth and reliable operation every day.

With their space-saving design, robust aluminium construction, and enhanced safety features, TermoExpress roller garage doors are the perfect answer for modern living needs.

Characteristics

TermoExpress offers two sizes of roller cover boxes (250 mm or 300 mm), depending on the construction opening. Thanks to their design, the boxes leave free space under the ceiling, increasing the usable area of the room. The roller covers can reach a maximum width of 4 meters.

The standard equipment includes:

  • aluminium 55 mm slats, available in a wide range of colours to match both customer preferences and the architectural style of the building;
  • protective elements such as hangers and interlocks;
  • motorized drives with a dedicated control system for maximum comfort.

Within the roller door mechanism, the hangers connect the octagonal tube to the curtain profile. Two types are available:

  • Steel hangers, consisting of a metal elastic arm with a plastic insert. While functional, this system offers minimal resistance if the motor is inactive, allowing the profile to be lifted from outside.
  • Blocking hangers, made of rigid plastic segments, designed to lock the profile firmly in place and prevent upward movement.

When closed, the roller door remains securely in a vertical position. The motor, located inside the tube, automatically prevents any movement when not in use. Combined with blocking hangers and the correct number of profiles, this makes it virtually impossible to lift the door from the outside.

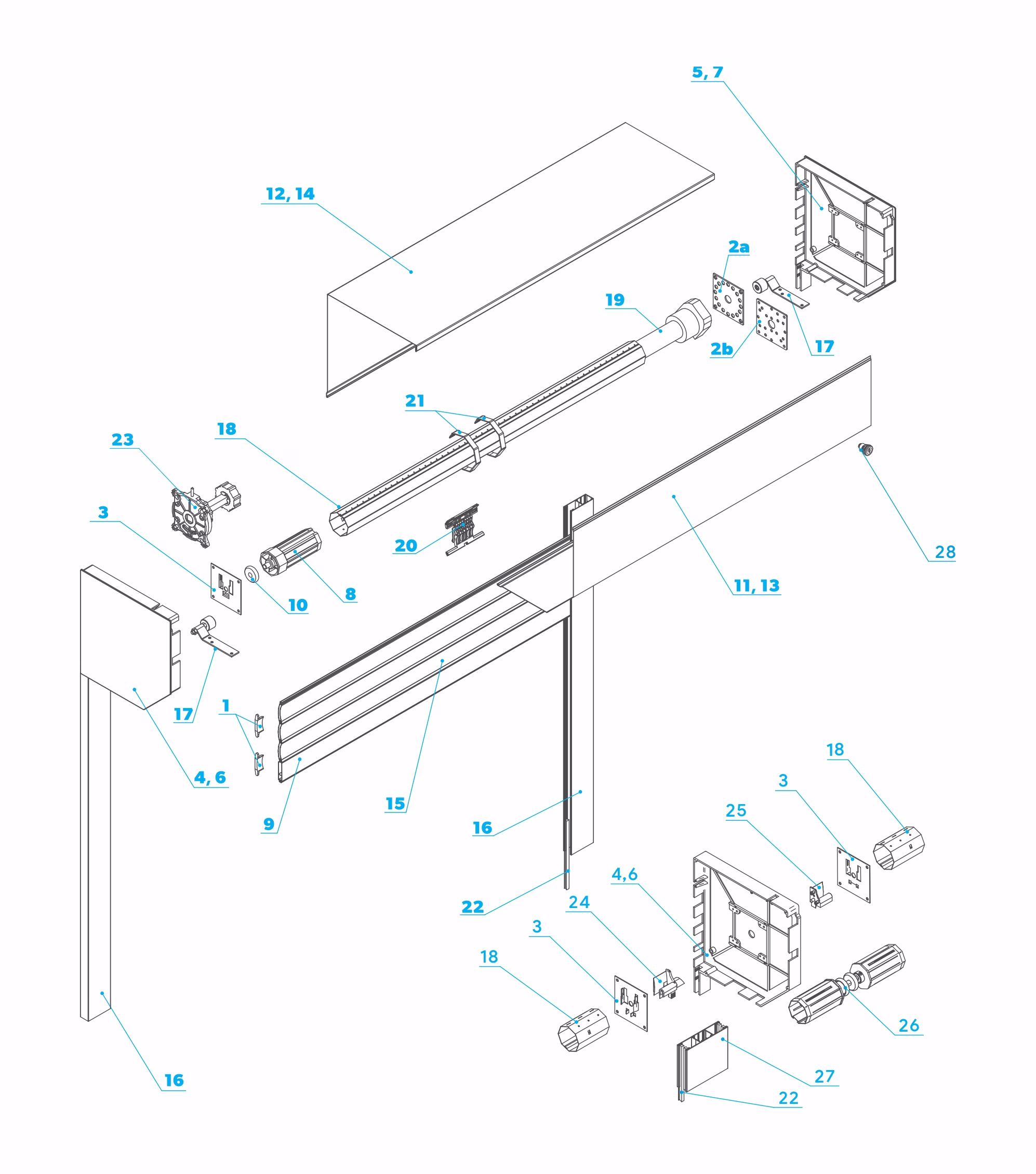

Technical Details:

  1. Profile plug for PA-55
  2. Somfy motor bracket
  3. Bearing bracket
  4. Side 250 L
  5. Side 250 P
  6. Side 300 L
  7. Side 300 P
  8. Movable mounting for Ø 70 pipe
  9. Bottom lath with a rubber seal
  10. Ball bearing Ø 40/12
  11. Box 250 bottom
  12. Box 250 top
  13. Box 300 bottom
  14. Box 300 top
  15. PA-55 profile
  16. PA-55 profile guide
  17. Single sliding roller (PA-55)
  18. Steel octagonal pipe Ø 70
  19. Motor
  20. Blocking bracket
  21. Brush seal
  22. Inertia brake
  23. Box key lock

Colours:

* These colours are orientative and may present some difference due to chromatic variations of screen calibration.

01 Silver

02 White

03 Grey

04 Dark Beige

05 Beige

07 Light Grey

09 Brown

16 Ivory

23 Anthracite

26 Steel olive

30 Walnut

48 Golden Oak

Automations:

  • Automating roller garage doors is straightforward, requiring only the installation of a tubular motor inside the shaft around which the curtain rolls.

  • The garage doors can be operated automatically via smartphone with the Tahoma Switch, through a simple wall switch, or with a radio remote control. Automation eliminates any manual lifting effort and ensures your garage is securely closed.
  • The remote controls are equipped with multiple channels, allowing one remote to operate several garage doors. Each channel can be programmed to control a single door or a group of doors, with settings that can be easily adjusted to your preferences.

We are an official distributor of SOMFY drives. Our company holds the SOMFY EXPERT status, awarded to partners who have completed certified training and proven their technical expertise with SOMFY products.
